Welcome to the first of more than a few blog entries on Data Diluvium. Data Diluvium is a project I’ve started focused around generating data for the purposes of testing, capacity, or whatever other needs might arise.
Definition of data
- : factual information (as measurements or statistics) used as a basis for reasoning, discussion, or calculation
- : information output by a sensing device or organ that includes both useful and irrelevant or redundant information and must be processed to be meaningful
- : information in numerical form that can be digitally transmitted or processed
Definition of deluge which is the English version of the latin diluvium.
- a : an overflowing of the land by water. b : a drenching rain “a deluge causing mudslides in the area”.
- : an overwhelming amount or number
…thus Data Diluvium.
The idea is to build a data generation service. Something that will generate random data in usable chunks; name generation, addresses, and related data. To get a wide range of use out of this capability I needed to build a web service application and a respective CLI (Command Line Interface) to go along with the web application.
A Microservice is Born!
The web service is going to generate pseudo-random data around name, addresses, phone numbers, and location. Over the course of this series I’ll add more data generation types and implement a schema for the actual data generation. This web service will be created based on microservice architectural and design ideas. However in the early stages of this effort I’ll keep it simple and will stick to implementing a minimally viable product (MVP). From here on out I’ll refer to this project as the Data Diluvium project.
Microservice Client CLI
For the client side, I want to provide a CLI in which to interface with the microservice itself. With this CLI I want to be able to provide basic configuration or passed parameters that will allow me to take the generated data and pass it directly into terminal output, out to a file, or prospectively as things develop directly into databases of various kinds themselves.
Overall this could be built in a number of technology stacks. I could use Node.js, .NET, Java, Erlang, or Go to build both the CLI and the microservice. With the multitude of choices it can be somewhat difficult picking the right stack to get things done as quickly, efficiently, well organized, and cleanly as possible. For this particular effort I’m going to go with Go to implement the microservice and the CLI.
Why Go you might ask? For the CLI, I’d want a cleanly built, fast, and responsive CLI that I can setup on any machine with minimal fuss. For Node.js for instance, one doesn’t get a built executable, but instead a kind of morass of tooling, and preinstallation software required. For Java and .NET one ends up with a great array of tooling to build a microservice and CLI, but the knowledge and time just to setup the initial development environments leads me away from those. With Erlang, maybe a day in the future, since it is indeed hugely and almost mystically powerful (yes, I just wrote mystically, it sounds appropriate).
Kick Off
First things first, I need the projects themselves. Here are the steps I took to get some basic parts building together for the two projects. The first step was simply to create two directories for each of these projects, one I named Data Diluviumand one Colligere. Inside both of those directories I put together a basic structure for each of these folders.
Basic Project Files
The frame of each included the following:
- I created a folder titled .github and placed the following files: CONTRIBUTING.md, ISSUE_TEMPLATE.md, and PULL_REQUEST.md.
- Next the standard .gitignore file with the following contents. This is the basic file Github starts a Go project with if selected during the creation of the repository. It has the minor addition of .DS_Store to keep that OS-X file out of the repository and the .idea director to keep out the IntelliJ, WebStorm, or Goland IDE (or any Jetbrains IDE) settings directory.
# Compiled Object files, Static and Dynamic libs (Shared Objects)
*.o
*.a
*.so
# Folders
_obj
_test
# Architecture specific extensions/prefixes
*.[568vq]
[568vq].out
*.cgo1.go
*.cgo2.c
_cgo_defun.c
_cgo_gotypes.go
_cgo_export.*
_testmain.go
*.exe
*.test
*.prof
.DS_Store
.idea
- I added the LICENSE file with the standard Apache 2.0 license legalese.
- Finally the README.md.
Build Files
It is important at this stage to create a build and get that build passing with some basic element of code. At this point I need some basic executing code and the respective build configuration files. For this I’ll create three files and name them respectively: main.go, codeship-steps.yml, and codeship-services.yml. In addition to the code, since I was going to be pulling in dependencies I’d need something to handle that, which I went ahead and chose glide.
I installed glide with the following commands on my OS-X machine, but since I am doing a lot of development on my new Leopard WS machine I installed glide with the curl command below.
Install with brew.
brew update
brew install glide
The curl installation step.
curl https://glide.sh/get | sh
With glide installed I ran the default initialization command glide create to get a glide.yaml and glide.lock file setup. Running this command will display the following via the CLI.
$ glide create
[INFO] Generating a YAML configuration file and guessing the dependencies
[INFO] Attempting to import from other package managers (use --skip-import to skip)
[INFO] Scanning code to look for dependencies
[INFO] --> Found reference to github.com/Masterminds/semver
[INFO] --> Found reference to github.com/Masterminds/vcs
[INFO] --> Found reference to github.com/codegangsta/cli
[INFO] --> Found reference to gopkg.in/yaml.v2
[INFO] Writing configuration file (glide.yaml)
[INFO] Would you like Glide to help you find ways to improve your glide.yaml configuration?
[INFO] If you want to revisit this step you can use the config-wizard command at any time.
[INFO] Yes (Y) or No (N)?
n
[INFO] You can now edit the glide.yaml file. Consider:
[INFO] --> Using versions and ranges. See https://glide.sh/docs/versions/
[INFO] --> Adding additional metadata. See https://glide.sh/docs/glide.yaml/
[INFO] --> Running the config-wizard command to improve the versions in your configuration
I then ran glide get github.com/icrowley/fake to get the fake library I would need. The glide.yaml and glide.lock looked like this after I pulled in this library.
glide.yaml
package: github.com/adron/datadiluvium
import:
- package: github.com/icrowley/fake
glide.lock
hash: 2fd78ca8369405d5998e65ea4cfce94c6599e878c36fec39b85fd385552392d7
updated: 2017-01-09T01:04:18.134993358-08:00
imports:
- name: github.com/icrowley/fake
version: 84bff6d01560fb0b5a396ba29534e93fd00d09c6
testImports: []
If you’re curious about the hash, and related properties of this file check out the glide README.md, it’s useful in understanding what’s stored here.
At this point, it was time to actually sling some Go code! At this point, I do indeed mean sling some too. Splat!
Some Go Code
In the main.go file I wrote some basic Go code just to have something to build. I wanted a little bit more than just a Hello World! code sample so I added a little bit more. I did some research and found the Fake library written by Dmitry Afanasyev from Ulyanovsk, Russia. I used Go get to pull that into the project and then added an import after package main with the various bits of code I’d want for my getting started code.
package main
import (
"encoding/json"
"fmt"
"io/ioutil"
"os"
"github.com/icrowley/fake"
"time"
)
The other libraries I knew I would need for various other output, date stamps, and other library features I’d want. Then I went to coding, my first sample of working code to prove out key functionality of the libraries looked like this.
type Page struct {
Title string `json:"title"`
Schema string `json:"schema"`
}
func (p Page) toString() string {
return toJson(p)
}
func toJson(p interface{}) string {
bytes, err := json.Marshal(p)
if err != nil {
fmt.Println(err.Error())
os.Exit(1)
}
return string(bytes)
}
func main() {
pages := getPages()
for _, p := range pages {
fmt.Println(p.toString())
}
fmt.Println(toJson(pages))
fmt.Println("\nSome Russian Random Data")
fake.SetLang("ru")
fmt.Println(fake.FirstName())
fmt.Println(fake.FullName())
fmt.Println("\n\n\nSome English Random Data")
fake.SetLang("en")
fmt.Println(fake.FirstName())
fmt.Println(fake.FullName())
thisMany := 10
counter := 1
t := time.Now().Format(time.RFC850)
fmt.Println("\n\n\nPrinting", thisMany)
for i := 0; i < thisMany; i++ {
fmt.Println(counter, fake.FirstName())
counter += 1
fake.FirstName()
}
fmt.Println("Start Time: ", t)
t = time.Now().Format(time.RFC850)
fmt.Println("End Time: ", t)
}
func getPages() []Page {
raw, err := ioutil.ReadFile("./deluge.json")
if err != nil {
fmt.Println(err.Error())
os.Exit(1)
}
var c []Page
json.Unmarshal(raw, &c)
return c
}
Now, this all was a small mess at this point. I know I needed to get it cleaned up. However the priority at this point is to get a build working that will provide a trusted basis to continue work from. Since I intend to use this to teach, for everyday testing, and hopefully to gain contributors (want to help?) it needs to have a good build, end of story.
Continuous Integration Build
At this point I have the main.go file executing with some Go code that pulls together some functionality on random data generation, file I/O (at least reading) with a JSON file for config, and displaying this out the console. So far, so good.
I’ve decided to use Codeship for this particular project. They’re a service provider the specializes in continuous integration and delivery services, and I might add that they’re good at it (* Also note declarations, etc at the bottom of this blog entry).
Two significant reasons I like to use Codeship are: remote builds & deploys with Docker and local builds with Docker. Having that combination is very effective, providing the capability to effectively to builds that include systemic deployments to my own local machine in addition to combining efforts with a prospective team together via the remote build.
CI Service Setup at Codeship
To setup the repository on Codeship for Docker support I went through these steps.

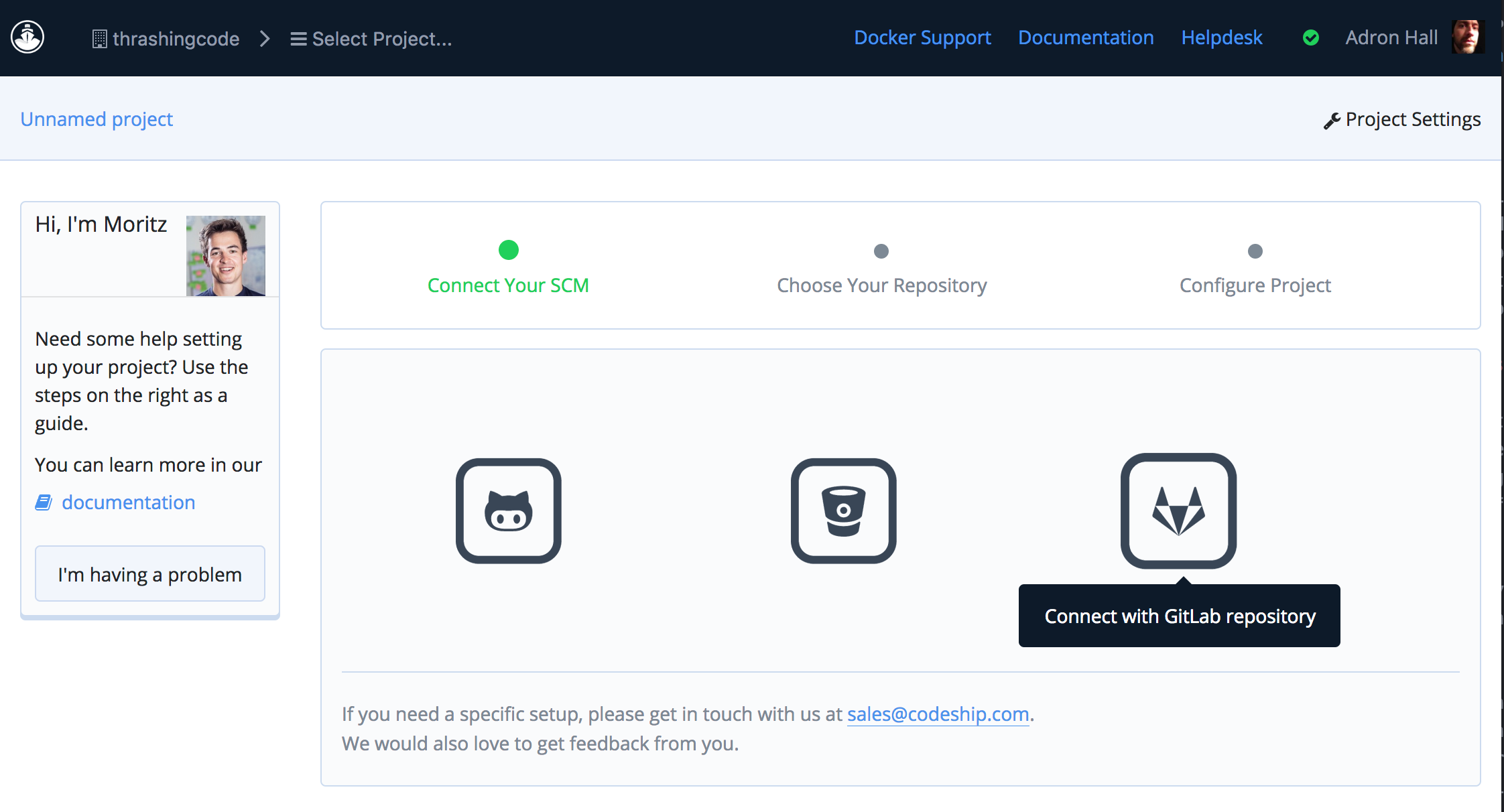

First select create new project. This is up on the Select Project bar or if you’ve just signed up it is available as the default screen when navigating to builds. Codeship just added Gitlab as a repository option recently, which I opted for the Data Diluvium Client, Colligere, using Gitlab just to test it out. At this time I really like my experience with Gitlab, but that’s for another blog entry, for now, onward!

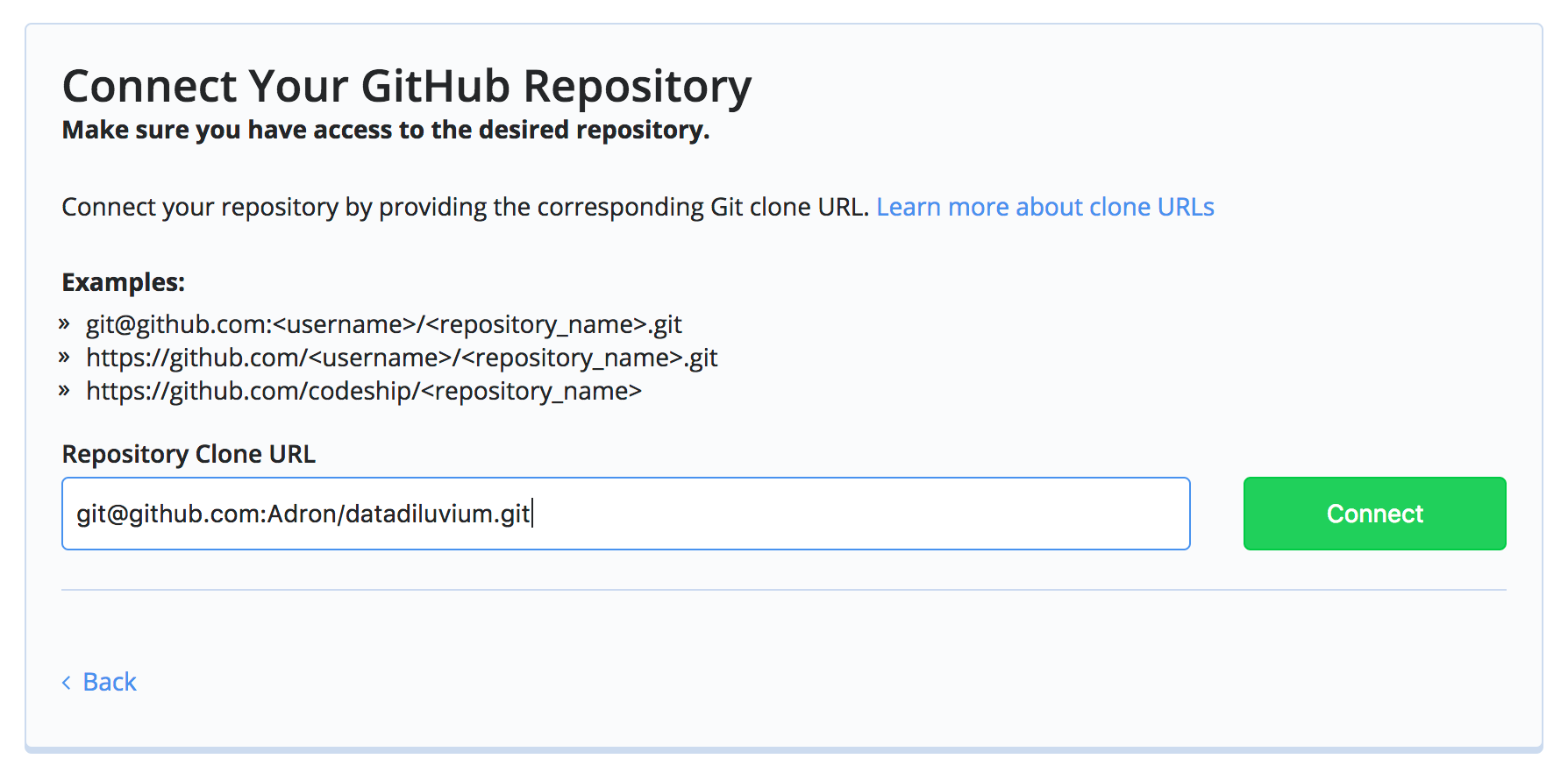

Next enter the path for the git repo.

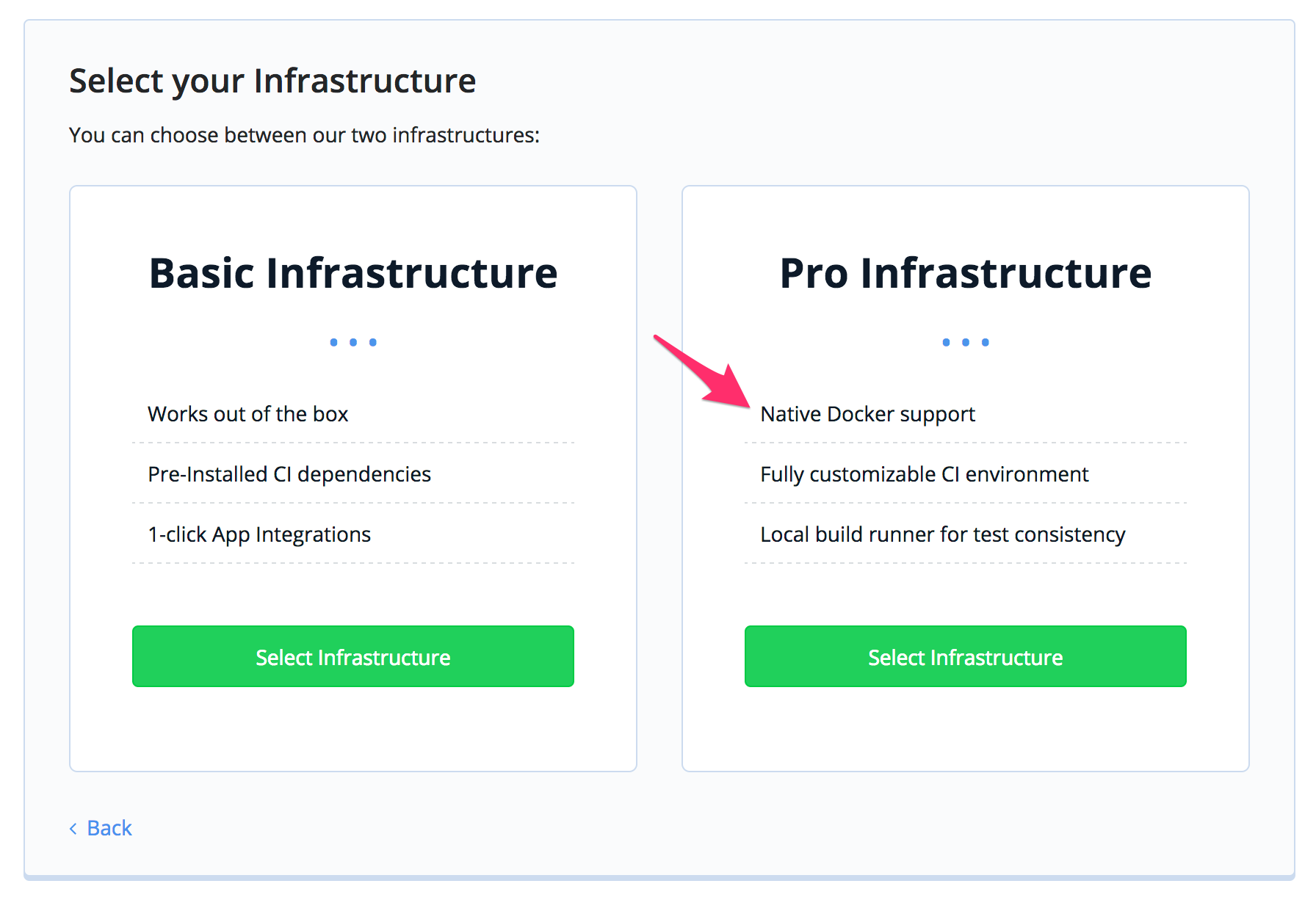

Select pro infrastructure. This will provide Docker capabilities.
Then it is time to setup the Docker configuration and yaml files for the build. The page at this point on Codeship has some links and such, for the two yaml files needed, but I’ll describe them here in detail a bit. In the image below a quick review of each element of the page: (1), the project settings, which will navigate to an area to setup notification, configure and add team members, repository details or reconnecting to a different repository, and general settings, which can be navigated to via (2), and (3) lists the current project the settings are displaying and available for changing.
Once the build project is setup in Codeship there are two files that are needed in the repository itself. Both of these files are simple yaml files. Each are given a default name of codeship-steps.yaml and codeship-services.yaml.
The codeship-steps.yaml file has the following steps listed for this project. I’ve associated these to a service called deluge_svc which will be defined in the codeship-services.yaml file. Then the commands, in order, are go clean, go test ./..., and go build.
- name: deluge
service: deluge_svc
command: go clean
- name: deluge_tests
service: deluge_svc
command: go test ./...
- name: deluge_build
service: deluge_svc
command: go build
The next file is codeship-services.yaml and has the following contents.
deluge_svc:
build:
image: deluge
dockerfile_path: Dockerfile
This simply gives the service a name, which in this case is deluge_svc and then points to which Docker image will be used and which Dockerfile will build that image. Here I’ve just placed Dockerfile as the file, and next will put together the Dockerfile.
Dockerfile
The Dockerfile I put together is based off of the official golang image, with the tag specific for the 1.7.4-alpine build. The Alpine build is basically a Linux image that is about ~10MB, maybe a little more or a little less depending on what needs to be added to the image to run the service.
In the case of the Data Diluvium App I’ve added a few things that will be needed in order to get the build working. The complete Dockerfile is below, but below that I’ll break out what is going on and what I needed to do to implement this Docker image to run as a container for the build (and by proxy any production use of the same image).
FROM golang:1.7.4-alpine
ENV GOPATH /go
RUN mkdir /app && \
apk add --update curl && \
rm -rf /var/cache/apk/*
ADD . /app/
WORKDIR /app
RUN apk update && apk upgrade && \
apk add --no-cache git && \
curl https://glide.sh/get | sh
RUN glide up && go get github.com/icrowley/fake && \
go build
CMD ["/app/datadiluvium"]
The first part of the file sets the official golang image and immediately after that I set the actual $GOPATH environment variable on the image.
FROM golang:1.7.4-alpine
ENV GOPATH /go
Next, I install curl with Alpine’s apk and clear out the apk cache.
RUN mkdir /app && \
apk add --update curl && \
rm -rf /var/cache/apk/*
Next are some very specific steps, which I’m not sure really meet a good practice, but it’s what I needed to do in the moment to get things working. The first steps here is simply adding the app directory, then setting it as the WORKDIR. Next I update apk again and upgrade the cache before installing glide. I’m not sure if this is absolutely necessary but I was running into errors and things not executing until I broke apart this section from the aforementioned section.
ADD . /app/
WORKDIR /app
RUN apk update && apk upgrade && \
apk add --no-cache git && \
curl https://glide.sh/get | sh
With glide installed it was time to grab the dependencies for the Docker image with glide up and for some reason, even though it’s in the glide yaml file I still had to specifically call out the go get github.com/icrowley/fake library before executing the go build step.
UN glide up && go get github.com/icrowley/fake && \
go build
CMD ["/app/datadiluvium"]
With that done, I could then finally run a build that encompassed all elements of what I’ve built so far. I did this simple with a jet steps command and realized I’d missed the steps needed to actually install the jet CLI. Since this first build I was working on, was actually on Ubuntu Linux, I followed these steps for getting the Jet CLI installed.
curl -SLO "https://s3.amazonaws.com/codeship-jet-releases/1.15.4/jet-linux_amd64_1.15.4.tar.gz"
sudo tar -xaC /usr/local/bin -f jet-linux_amd64_1.15.4.tar.gz
sudo chmod +x /usr/local/bin/jet
However there is a brew cask that can be used to install jet with too. It’s a one line command.
Ok, that should get those following along with a running build too. There is of course the prereq of having git and docker installed too, I’ll admit I keep making the mistake of assuming those things are installed everywhere. So if you hit a hiccup at this point, it may be because those two things need installed – which likely will have caused errors far before this.
With jet steps running the build locally, I can now navigate to Codeship and check out the build when I commit all of this work.
git add -A
git commit -m 'First code all wrapped up.'
git push origin master
…and that’s it for this entry. Hope that’s useful for getting your own Go project started. If you’re interested, definitely ping me if you’d like to work on Data Diluvium some too. I’m looking for help.
Cheers! -Adron
Declarations & References
- Codeship – I’ve worked for Codeship providing technical writing and good coding fun with the crew there. They’re not currently paying me, but I will likely do more work for them, so take that into account when judging my judgement of their products. As always, I’m not into any shill work and wanted you dear reader, to have full clarity into my use of the tech. Cheerio!
- Collected Links – Codeship, Data Diluvium, Data Diluvium Github Project, Colligere.

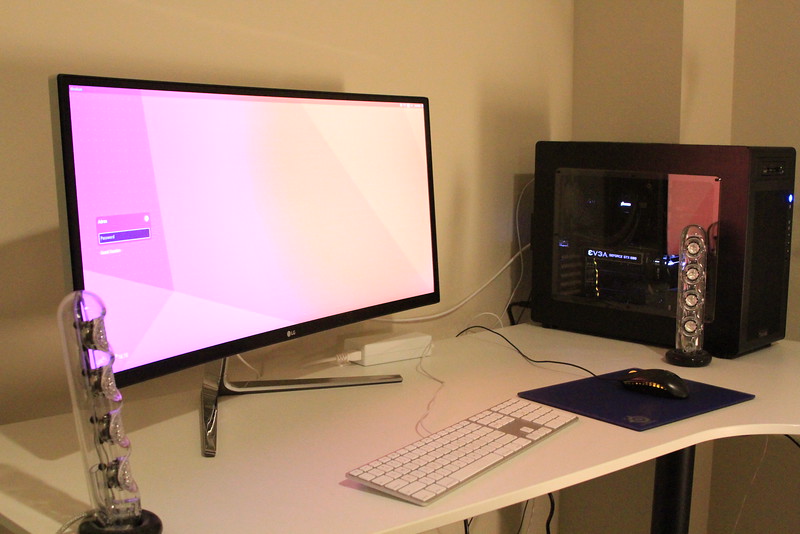

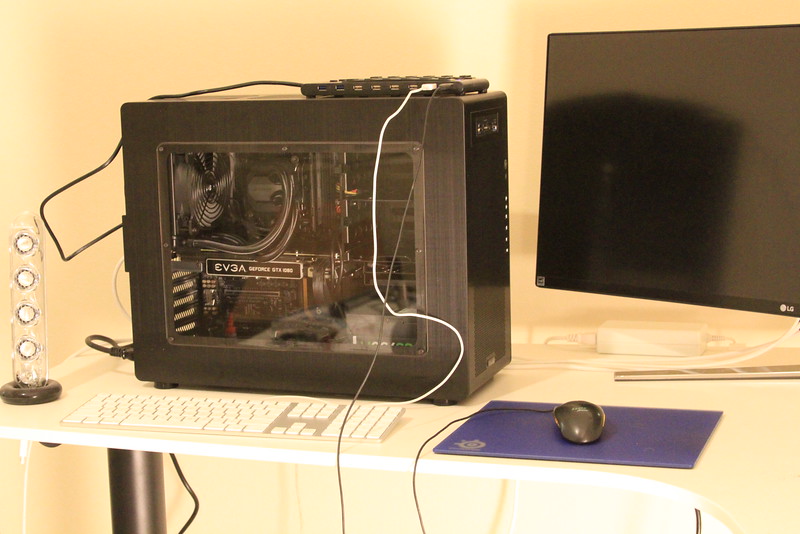

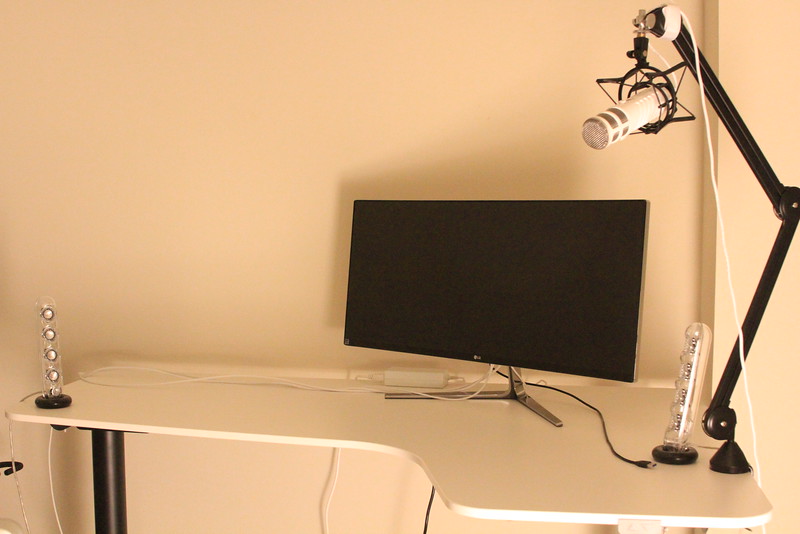

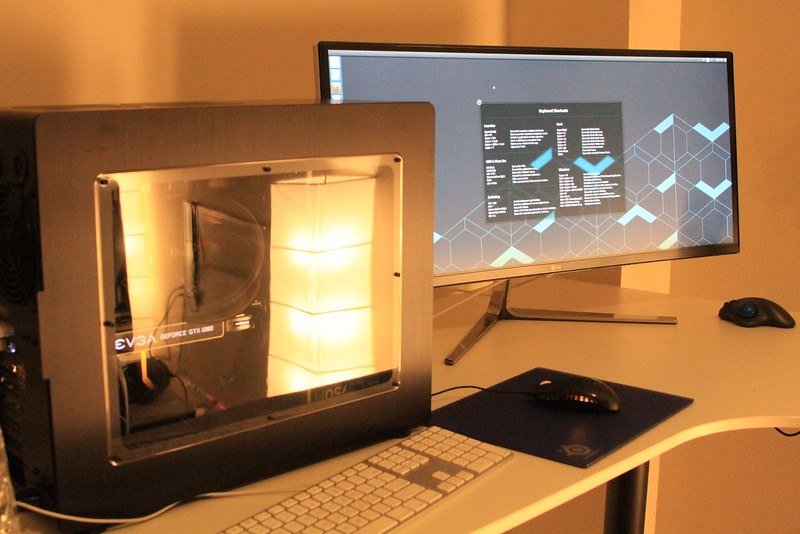

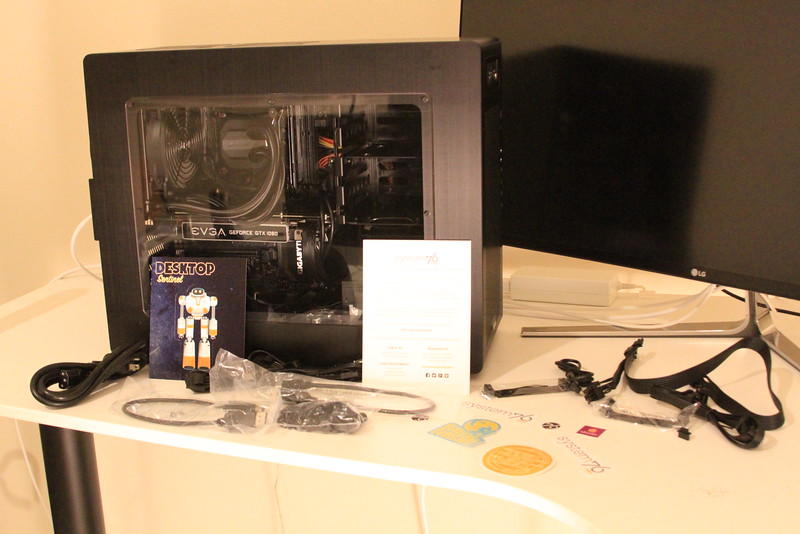

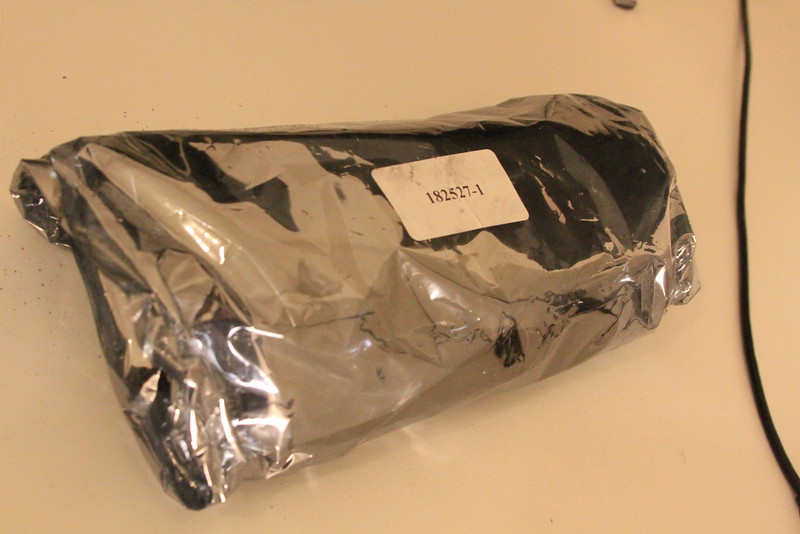

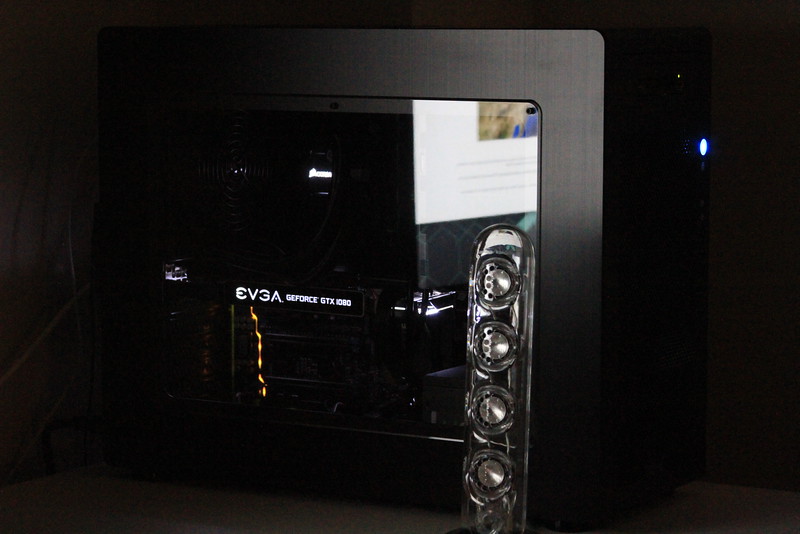

January 24th, 2017 UPDATE: After I wrote this, I spoke with the System 76 team and I’m getting the chance to go out and tour their Denver Headquarters. This happened well after I made my purchase, which all of the following was written after. But just for full transparency, I’ve added this note. Also, I’m aiming to get a full write up of my System76 trip put together with Denver tidbits and more! Until then, here’s the review…
